Machine Type

T450s - Help regarding installing SSD later on. So looking at T450s configuration, I have following options: Hard Drive: HDD OR. Micro Harddrive. 16GB m.2 NGFF SSD. System Expansion Slots: No Smartcard Reader OR. 3rd M.2 SSD slot OR. Smart Card Reader. I want to go for 500GB HDD, but want to make sure I can install another SSD. I inquired the seller about the 3rd M.2 slot, and the seller is not sure about it. From what I have read, every T450s can have up 3 drives, one 2.5 drive and 2 M.2 drives. Is that a correct understanding? Is the 3rd M.2 SSD slot available already? I know if I order a CTO one, I have to specify a 3rd M.2 slot.

  • Broadwell: 20BW, 20BX

Standard Features

Dimensions:

  • Size:
    • Models without touchscreen: 331mm x 226mm x 20.6mm (13.0' x 8.90' x 0.81')
    • Models with touchscreen: 331mm x 226mm x 22.9mm (13.0' x 8.90' x 0.90')
  • Weight:
    • Starts from 1.32kg (2.9lbs) with only external 3-cell Li-ion battery (23Wh)
    • Discrete GPU option adds 0.24kg (0.53lbs)
    • Internal battery option (3-cell Li-polymer, 23Wh) adds 0.11kg (0.24lbs)
    • 6-cell external battery option (Li-ion, 48Wh) adds 0.18kg (0.40lbs)
    • 6-cell external battery option (Li-ion, 72Wh) adds 0.18kg (0.40lbs)

Color:

  • Black

Features:

  • CPU: one of the following ULV processors
    • Intel Core i5-5200U, 2.2 - 2.7 GHz, 3MB Cache
    • Intel Core i5-5300U, 2.3 - 2.9 GHz, 3MB Cache
    • Intel Core i7-5600U with vPro, 2.6 - 3.2 GHz, 4MB Cache
  • RAM:
    • 4GB DDR3L-1600 (PC3L-12800) soldered to the systemboard
    • One free socket supporting up to 8GB DDR3L SO-DIMM
  • GPU:
    • Intel HD Graphics 5500 integrated into CPU
  • Maximum supported resolution on external monitor:
    • 3840x2160@60Hz via mDP
    • 1920x1200@60Hz via VGA
  • Display: one of the following IPS anti-glare displays with LED backlight, 700:1 contrast ratio and 160° viewing angle
    • 14.0' 1600x900 ('HD+'), 250 nits, 400:1 contrast ratio
    • 14.0' 1920x1080 ('FHD'), 300 nits, 700:1 contrast ratio
    • Multitouch option available
  • Storage: one of the following
    • SATA 3 SSD, 7mm high
    • SATA 3 HDD, 7mm / 9mm high
    • SATA 3 SSHD
    • Optional M.2 SSD
  • M.2 slot with one of the following
    • Thinkpad 11b/g/n 2x2 Wi-Fi + Bluetooth combo adapter
    • Intel Wireless-N 7265 2x2 Wi-Fi + Bluetooth card
    • Intel Dual Band Wireless-N 7265 2x2 Wi-Fi + Bluetooth card
    • Intel Dual Band Wireless-N 7265 2x2 Wi-Fi + Bluetooth card
  • M.2 slot with one of the following options
    • Ericsson® N5321 WWAN card with HSPA+ 21Mbps/GSM/GPRS/EDGE and GPS
    • Sierra Wireless EM7345 WWAN card with 4G LTE/HSPA/GSM/GPRS/EDGE and GPS
    • Qualcomm Snapdragon X7 LTE-A (Sierra Wireless EM7455), LTE-Advanced/DC-HSPA+/HSPA+/HSPA/UMTS/GNSS
  • SIM card slot
  • Ethernet: one of the following
    • Intel I219-V
    • Intel I219-LM (vPro models)
  • 720p HD Integrated camera
  • Batteries:
    • 3-cell internal Li-ion battery, 23Wh (option)
    • 3-cell external Li-ion battery, 23Wh
    • 6-cell external Li-ion battery, 48Wh (option)
    • 6-cell external Li-ion battery, 72Wh (option)
T450s 3rd M.2 Ssd Slot
  • Power adapter: one of the following with slim Lenovo charging port
    • 45W AC adapter
    • 65W Slim AC adapter
    • 65W AC adapter
  • Security features
    • Kensington lock slot
    • TPM module
    • Integrated Fingerprint Reader (optional)
  • Pointing devices
    • TrackPoint (with 3 physical buttons)
    • UltraNav touch pad

Resources

This category currently contains no pages or media.

Retrieved from 'https://www.thinkwiki.org/w/index.php?title=Category:T450s&oldid=59045'
I currently use a T530 with two storage drives (mSATA and SSD), but this laptop is a bit too bulky for me to carry around the office so I am considering the T450s.
On the Lenovo US site, this laptop is configurable with three storage options:
1. Normal SSDT450s 3rd M.2 Ssd Slot
2. 16GB M2 SSD (pre-installed)

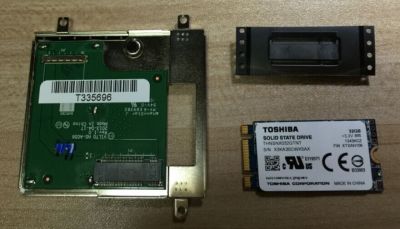

3. (optional) 3rd M2 SSD in place of the smart card reader.
Here is where I have some questions:
1. I am not sure if these parts are field replaceable (like the mSATA slot on my T530) or do I have to configure it online.

T450s 3rd M.2 Ssd Slot Machine


2. What kind of SSD fits in these slots? M2 is just the name of an interface which can support many sizes of cards.

T450s 3rd M.2 Ssd Slot Card


T450s 3rd m.2 ssd slot drive3. I don't think RAID is possible, but just confirming.
4. Is it possible to select individual drives for booting; as on the T530 where each drive appears in the boot device options menu (F12 key during startup).

T450s 3rd M.2 Ssd Slot Driver


T450s 3rd M.2 Ssd Slot Tool

Any help would be appreciated.
